2026 Custom 85' (25.91 m) AES 85
Tuzla, Turkey
AES

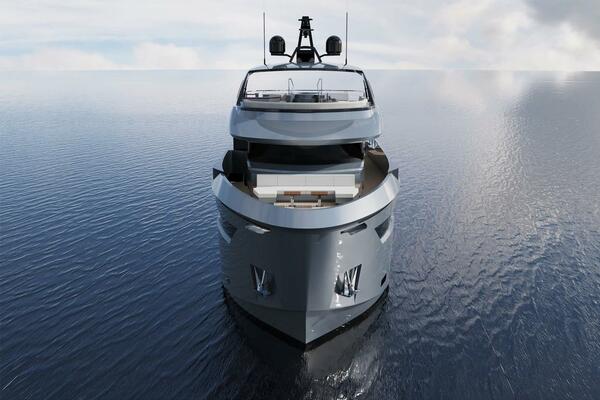

The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure.
Flag of Registry: Malta
- Motor Yachts
- Power
- New
- Diesel
- Steel Hull
- HIN/IMO: PENDING
- Stock #: B94558
$ 15,517,490 CAD
$ 11,293,250 USD
€ 9,950,000 Euros
£ 8,390,116 GBP
Description
The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure. Twin Cummins give her a trans-Atlantic range while zero speed stabilizers assure comfort both underway and at anchor. A fully bespoke interior by Milan based Hot Lab sleeps 8 guests in 4 cabins with accommodations for 4 crew in 2 cabins.
The hull and superstructure are completed with construction will underway. Delivery is scheduled for mid-2026 so you can have her dully ready for the 2026 Mediterranean summer season.
The buyer still has the ability to customize the interior décor with Hot Lab to suit their personal style and taste.
Excellent opportunity with a fast delivery date.
Full presentation available upon request.
Maple Leaf Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Denison Yachting. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
HIN/IMO: PENDING
Stock #: B94558
LOA: 85' (25.91 Meters)
Type: Power- New
Year: 2026
Beam: 26' 2''
LWL: 78' 7''
Draft Max: 8' 2''
Cabins: 4
Sleeps: 8
Heads: 5
Crew Cabins: 2
Crew Sleeps: 4
Maximum Speed: 11 Knots
Cruise Speed: 8 Knots
Fuel Type: Diesel
Super Structure Material: Aluminum
Hull Material: Steel
Fuel Tank: 9247 Gallons (35003.69 Liters)
Fresh Water: 924 Gallons (3497.72 Liters)
Holding Tank: 951 Gallons (3599.92 Liters)
Interior Designer: Hot Lab
Builder: AES Yachts
Photos click to view all
Engines
Engine 1
- Engine Make: Cummins
- Engine Model: QSM 11
- Engine Type: Inboard
- Power HP: 455.00
- Power KW: 339.29
- Fuel Type: Diesel
- Engine Location: Port
Engine 2
- Engine Make: Cummins
- Engine Model: QSM 11
- Engine Type: Inboard
- Power HP: 455.00
- Power KW: 339.29
- Fuel Type: Diesel
- Engine Location: Starboard
Generators
Generator 1
- Generator Make: Kohler
- Generator KW: 35.00
Generator 2
- Generator Make: Kohler
- Generator KW: 35.00
Full Details
Technical Details
Builder: AES Yachts
Year: 2026
Exterior Design: AES Yacht
Interior Design: Hot Lab
Naval Architecture & Engineering: AES Yacht/Endaze Engineering
Length Overall: 26.0 m/85 ft
Length at Waterline: 23.95 m/78.5 ft
Breadth Max: 8.0 m/26.2 ft
Draft: 2.5 m/8.2 ft
Gross Tonnage: 235 gt
Hull Material: Steel
Superstructure Material: Aluminum
Class: RINA, CE Category A, Module G
Flag: Maltese
Engines: (2) Cummins QSM 11 455 hp
Max Speed: 11 knots
Cruising Speed: 8 knots
Range at Cruising Speed: 6,000 nm
Generators: (2) Kohler 35 kW @1,500 rpm 50 Hz, 400V
Fuel Tank Capacity: 35,000 liters/9,247 gallons
Fresh Water Tank Capacity: 3,500 liters/924 gallons
Sewage Tank Capacity: 3,600 liters/951 gallons
Staterooms: 4; sleeps 8 guests
Crew Cabins: 2; sleeps 4 crew
PROPULSION & AUXILIARY MACHINERY
- ZF Gearbox
- F51 Duplex stainless steel shaft
- (4) Control stations
- Aluminum bronze propeller
- Bow Thruster: (1) Sleipner SH550, hydraulic
- Stern Thruster: (1) Sleipner SH550, hydraulic
- Data hydraulic steering system
- Stabilizers: Sleipner, zero speed, vector fin kit 1.95 sqm
- Danfoss PTO pumps
- Water Makers: 460 liters(121 gallons)/hour total, duplex, Idromar
- Idromar fresh water systems
- Air Conditioning: Mediterranean Climate - Webasto
- Engine Room Inlet & Outlet Fans: (2) Gianneschi
- Fuel Filtration: (1) Alfa Laval
- Sewage Treatment System: Hamann, HL compact 3,000 liters (792 gallons)/day
- Tecma toilet system
- Gianneschi pumps
- (1) Alfa Laval fuel separator and filters
- (1) Atlas Copco compressor
- Kahlenberg air horn
ELECTRICAL SYSTEMS
- Electrical Supplies: 230/400V - 50hz
- Batteries Starter & Service: Mastervolt or Victron
- Service Generator: (2) Kohler 35 kW with Sound Encloser
- Shore Power: (1) Glendenning Cable Master
- AV & IT Automation System: KNX, ABB
DECK EQUIPMENT & COATING
- (2) Data hydraulic anchor winches (windlasses)
- (2) Data hydraulic mooring winches (capstans)
- (2) Data hydraulic anchor & anchor chain
- Tender Crane: (1) Opacmare - Loading capacity 1,000 kg
- Transformer: (1) Opacmare 5 steps - Lifting capacity 420 kg
- Passarelle: (1) Opacmare - Length 5.040 mm
- Electrical Sliding Doors: (2) Besenzoni or Makro Yachts
- (8) Underwater lights or Oceanled
- Awl Grip top coat (topsides & superstucture)
SAFETY SYSTEMS
- Sliding Watertight Doors: Winel or equal
- Fire Fighting: Fire Pro FP 1200
- Fire Detection & Alarm: Tyco T2000 or Consilium
- Security (CCTV): Samsung
NAVIGATION & ELECTRONIC EQUIPMENT
- Furuno navigation equipment
- Navigation lights
- (1) Intellian TV antennas
- Network IT system
- 4G/WiFi system
